Omnidirectional MIMO Ceiling Antenna 20W 2.4 / 5.8GHz WLAN / WIFI / WIMAX

Name: Omnidirectional MIMO Ceiling Antenna 20W 24 58GHz WLAN WIFI WIMAX
Brand: winspread
Price: 50 USD

Brand Name : winspread

Model Number : FTQ-2458MXD0304V6A

Certification : no have

Place of Origin : CHINA

MOQ : 1

Price : $50~300

Payment Terms : D/A

Supply Ability : 500

Delivery Time : 30 work days

Frequency Range (MHz) : 2400 to 2500/ 5150 to 5850

Bandwidth (MHz) : 100（2400 to 2500）/ 700（5150 to 5850）

Polarization : Vertical

Gain (dBi) : 2.5（2400 to 2500）/ 4（5150 to 5850）

Impedance (Ω) : 50

Max. Power (W) : 20

Contact Now

Omnidirectional MIMO Ceiling Antenna 2400 To 2500 / 5150 To 5850 MHz

● Model: FTQ-2458MXD0304V6A

● Name: Omnidirectional MIMO Ceiling Antenna

● Freq.Range: 2400 to 2500 / 5150 to 5850 MHz

● Communications system:

2.4/5.8GHz WLAN/WIFI/WIMAX,

Spread Spectrum Communication

Indoor distributed communication system

● Application scenario:

Wireless data and image transmission,

Indoor signal omnidirectional coverage,

Public wireless hotspot coverage,

IEEE802.11a/b/g/n

Omnidirectional MIMO Ceiling Antenna 20W 2.4 / 5.8GHz WLAN / WIFI / WIMAX

Electrical Specifications
Freq.Range-MHz	2400 to 2500	5150 to 5850
Bandwidth-MHz	100	700
Polarization	Vertical
Gain-dBi	2.5	4
Impedance-Ω	50
VSWR	≤ 1.5	≤ 2.0
Max.Power-W	20

Mechanical Specifications
Connector	6×RPTNC male or Customized
Connector Quantity	Six 2.4/5GHz Connector
Connector Position	Cable outgoing
Cable Length-CM	20CM or Customized
Dimension-MM	About Φ145×42
Weight-G	About 180
Radome material	ABS
Radome color	White
Operational Temperature-℃	-40 to 60
Storage Temperature-℃	-55 to 85
Relative Humidity-%	5 to 95

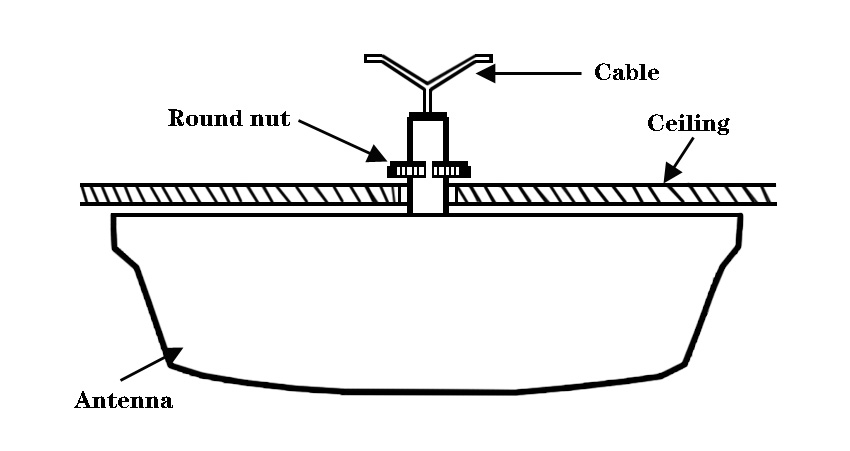

Mounting way	Nuts fixed to the ceiling
